Mixed-Integer Linear Programming combines two types of decision variables:

• Integer variables: Discrete choices (e.g., machine ON/OFF, which shift to schedule)
• Continuous variables: Quantities that can vary smoothly (e.g., production rate, power consumption)

Unlike pure Linear Programming (LP), MILP can model real-world constraints like:

• Binary on/off decisions
• Minimum up/down times (can't cycle too quickly)
• Startup costs
• Discrete operating modes

The "Linear" part means the objective and constraints must be linear—but we'll see how to handle nonlinear power curves using clever approximations.

Inputs

1. 24-hour electricity prices (€/kWh) - varying from €0.09 to €0.22
2. Production target: 200 widgets (must produce exactly this amount)
3. Machine constraints:
   • Rate limits: 10-100 widgets/hr when ON
   • Minimum up time: 2 hours (once started, must run at least 2 hours)
   • Minimum down time: 1 hour (once stopped, must stay off at least 1 hour)
4. Power consumption curve (nonlinear!):

   power(kW) = a × rate² + b × rate + c

   where:

   • a: Quadratic coefficient (inefficiency at high rates)
   • b: Linear coefficient (direct energy per widget)
   • c: Base load (fixed overhead when ON)

Output

An optimal 24-hour schedule specifying:

• Which hours to run the machine (ON/OFF)
• Production rate for each hour
• Total energy cost

Decision Variables

Binary (Integer) Variables - 72 total (24 hours × 3):

m.on[t]    # 1 if machine ON at hour t, 0 otherwise
m.start[t] # 1 if machine starts at hour t
m.stop[t]  # 1 if machine stops at hour t

Continuous Variables - 48 total (24 hours × 2):

m.rate[t]  # Production rate (widgets/hour) at hour t
m.power[t] # Power consumption (kW) at hour t

Key Constraints

1. Link rate to on/off state:

rate[t] >= rate_min * on[t]  # When ON: rate >= 10
rate[t] <= rate_max * on[t]  # When OFF: rate = 0

2. Startup/shutdown logic:

start[t] >= on[t] - on[t-1]  # Detects OFF→ON transitions
stop[t] >= on[t-1] - on[t]   # Detects ON→OFF transitions

3. Minimum up/down time:

# If we start at t, must stay on for min_up_hours
sum(on[k] for k in range(t, t+min_up_hours)) >= min_up_hours * start[t]

# If we stop at t, must stay off for min_down_hours
sum(1-on[k] for k in range(t, t+min_down_hours)) >= min_down_hours * stop[t]

4. Daily production target:

sum(rate[t] for t in 0..23) == 200  # Equality mode

5. Piecewise-linear power curve (the clever part!):

Since power = a×rate² + b×rate + c is nonlinear, we approximate it using piecewise-linear segments with SOS2 (Special Ordered Set type 2) variables:

m.pw = pyo.Piecewise(
    m.T,                    # Index: hours 0-23
    m.power,                # Dependent variable: power
    m.rate,                 # Independent variable: rate
    pw_pts=breakpoints,     # e.g., [0, 9, 18, 27, ..., 100]
    f_rule=power_values,    # Power at each breakpoint
    pw_constr_type="EQ",    # Equality: power = f(rate)
    pw_repn="SOS2",         # Use SOS2 for MILP efficiency
)

This creates 12 piecewise-linear segments that closely approximate the quadratic curve while keeping everything linear for the MILP solver.

Objective Function

minimize: energy_cost + startup_penalties

where:
  energy_cost = sum(price[t] * power[t] for t in 0..23)
  startup_penalties = startup_cost * sum(start[t] for t in 0..23)

Here's where things get interesting. By varying just the quadratic coefficient a in the power curve, we can simulate different types of machinery—and the optimizer adapts its strategy dramatically!

Experiment 1: High Quadratic Penalty (a = 0.015)

Power curve: power = 0.015×rate² + 0.6×rate + 5.0

At maximum rate (100 widgets/hr):

• Quadratic term: 150 kW (70% of total!)
• Linear term: 60 kW (28%)
• Base load: 5 kW (2%)
• Total: 215 kW

This represents equipment with severe inefficiencies at high speeds (e.g., pumps with quadratic drag losses).

Optimal Strategy:

Hours ON: 0-7, 15-20, 23 (15 hours total)
Max rate: 27 widgets/hr (conservative)
Total cost: €35.62

The optimizer spreads production across many hours at low rates to avoid the crushing quadratic penalty.

Experiment 2: Low Quadratic Penalty (a = 0.001)

Power curve: power = 0.001×rate² + 0.6×rate + 5.0

At maximum rate (100 widgets/hr):

• Quadratic term: 10 kW (13%)
• Linear term: 60 kW (80%)
• Base load: 5 kW (7%)
• Total: 75 kW

This represents highly scalable equipment with mostly linear power consumption.

Optimal Strategy:

Hours ON: 2-6 (5 hours only!)
Max rate: 60 widgets/hr (aggressive burst)
Total cost: €29.25 (18% savings!)

The optimizer concentrates all production in the cheapest hours (4-5am at €0.09/kWh) and runs at maximum feasible rates. This is a "sprint during cheap hours, stop during expensive hours" strategy.

Experiment 3: Medium Quadratic Penalty (a = 0.005)

Power curve: power = 0.005×rate² + 0.6×rate + 5.0

At maximum rate:

• Quadratic term: 50 kW (43%)
• Total: 115 kW

Optimal Strategy:

Hours ON: 0-6, 18-19 (9 hours)
Max rate: 36 widgets/hr (balanced)
Total cost: €31.75

A perfect middle ground—moderate rates, focused on cheaper hours.

The Strategy Spectrum

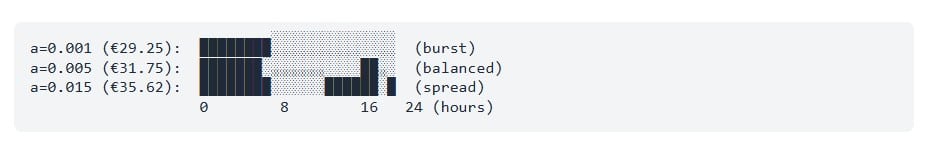

Visual representation:

Using the CBC (COIN-OR Branch and Cut) solver, here's what happens:

Problem size: 191 constraints, 383 variables (71 binary)
LP relaxation: €29.25 (lower bound)
Cutting planes: 13 cuts added (Gomory, Probing, MIR)
Integer solution: €29.25 (found in 0 nodes!)
Solve time: 0.01 seconds

Key insight: The cutting planes were so effective that the LP relaxation bound matched the integer solution exactly—no branch-and-bound exploration needed! This is why MILP solvers are so powerful for well-structured problems.

Key insight: The cutting planes were so effective that the LP relaxation bound matched the integer solution exactly—no branch-and-bound exploration needed! This is why MILP solvers are so powerful for well-structured problems.

1. Equipment Efficiency Curves Matter—A Lot

The quadratic coefficient a acts as a "burst penalty" dial:

• Low a (scalable equipment): Burst strategy during cheap periods
• High a (inefficient at high rates): Spread strategy across more hours

Before optimizing, measure your actual equipment's power curve! Use the breakpoints configuration:

curve:
  type: breakpoints
  rate_points: [0, 10, 20, 40, 60, 80, 100]
  power_points: [0, 12, 25, 52, 85, 130, 195]  # From real measurements

2. MILP Can Handle Complexity

This problem has:

• Binary on/off decisions
• Minimum up/down time constraints
• Nonlinear power curves (approximated)
• Hourly varying constraints and prices

Yet it solves in 0.01 seconds on a laptop.

3. The Base Load (c) Creates Interesting Trade-offs

The fixed 5 kW base load when ON:

• Makes short, low-rate runs inefficient (overhead dominates)
• Encourages either running longer or at higher rates
• Creates the "sprint vs. marathon" dynamic we observed

4. Constraints Shape Solutions in Non-Obvious Ways

The min_up_hours=2 constraint forces at least 2-hour runs, preventing the optimizer from doing rapid on/off cycling. Without this, it might cycle every hour to chase price fluctuations (unrealistic for real equipment).

The complete optimizer is ~400 lines of Python and supports:

• Polynomial or breakpoint power curves
• CSV input for prices and hourly constraints
• Configurable min up/down times, ramp rates, startup costs
• Both equality and minimum production targets

Key dependencies:

pip install pyomo pandas pyyaml
sudo apt install coinor-cbc  # or: brew install cbc

Run it:

python producer_milp.py \
  --config config.yaml \
  --prices prices.csv \
  --out schedule.csv

Mixed-Integer Linear Programming is a powerful tool for optimization problems with both discrete decisions (on/off) and continuous variables (rates, power). By modeling our manufacturing problem as a MILP:

1. We found 18% cost savings by tuning equipment strategy to match its efficiency characteristics
2. We discovered how quadratic efficiency curves fundamentally change optimal scheduling strategies
3. We solved a complex 24-hour scheduling problem in 10 milliseconds

The real magic happens when you combine:

• Domain knowledge (equipment physics, operational constraints)
• Mathematical modeling (MILP formulation)
• Modern solvers (CBC, Gurobi, CPLEX)

Whether you're scheduling production, optimizing energy systems, planning logistics, or routing vehicles—MILP is likely the right tool for the job.
